Link its are made on a chassis jig to fit the set wheelbase.

All links will have a pen mark for install direction; the marking will face towards the ground and mounted on or at the skid. All kits are made for the chassis to set LOW. This makes for great sidehill ability and still have excellent breakover. Check the FAQ for shock recommendations and setup.

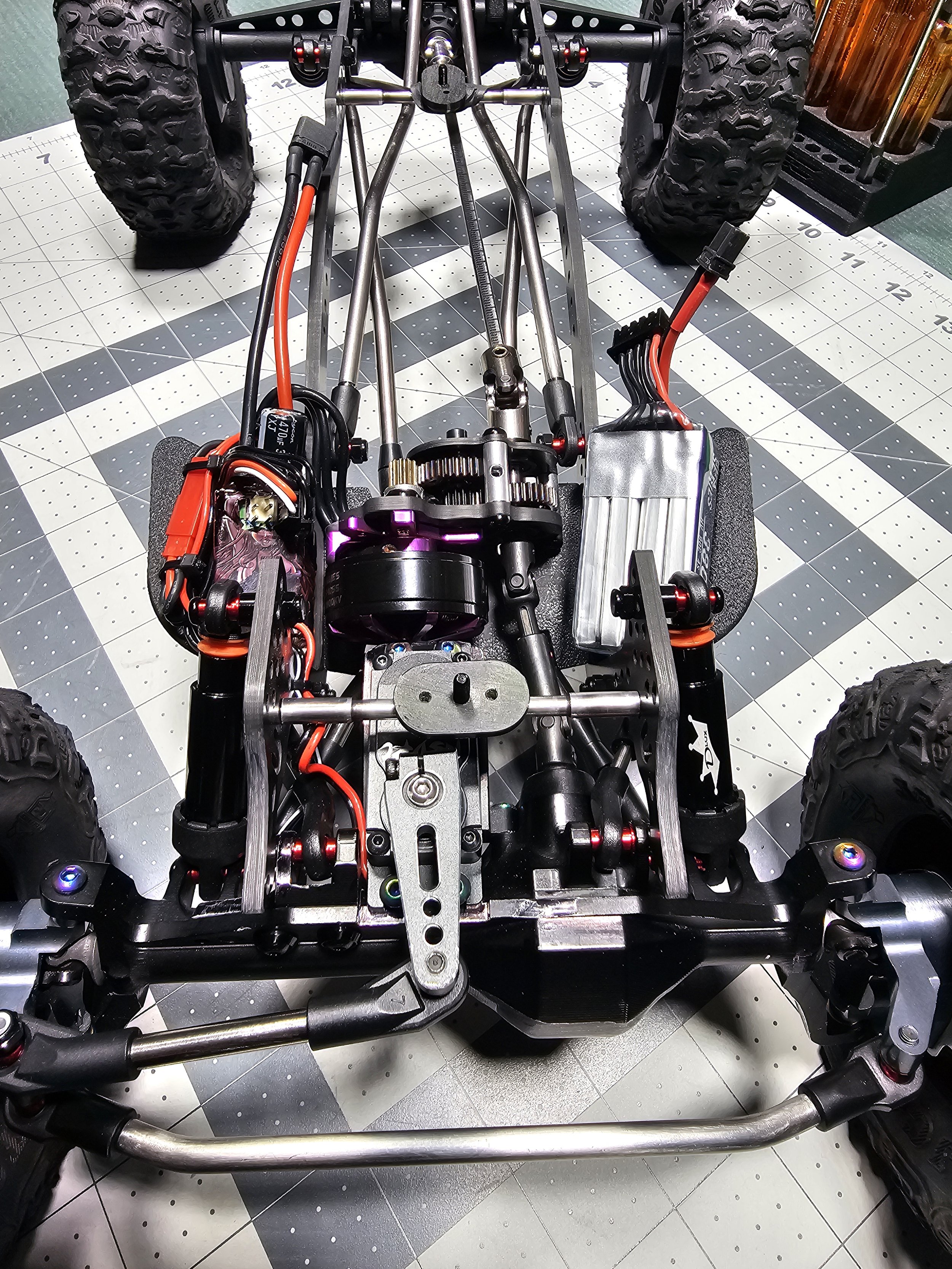

Front End:

Upper links 1/8” (Thin short links) mount to chassis in desired link hole just above the skid. Depending on the axle and clearance, spacers will be needed for free movement on the front axle. Ground Zero with Capra dlux bta mount, links will be mounted outside of the link location with 2mm spacers.

Lower links 3/16” (Thicker short links) mount to the skid with 22mm set screws.

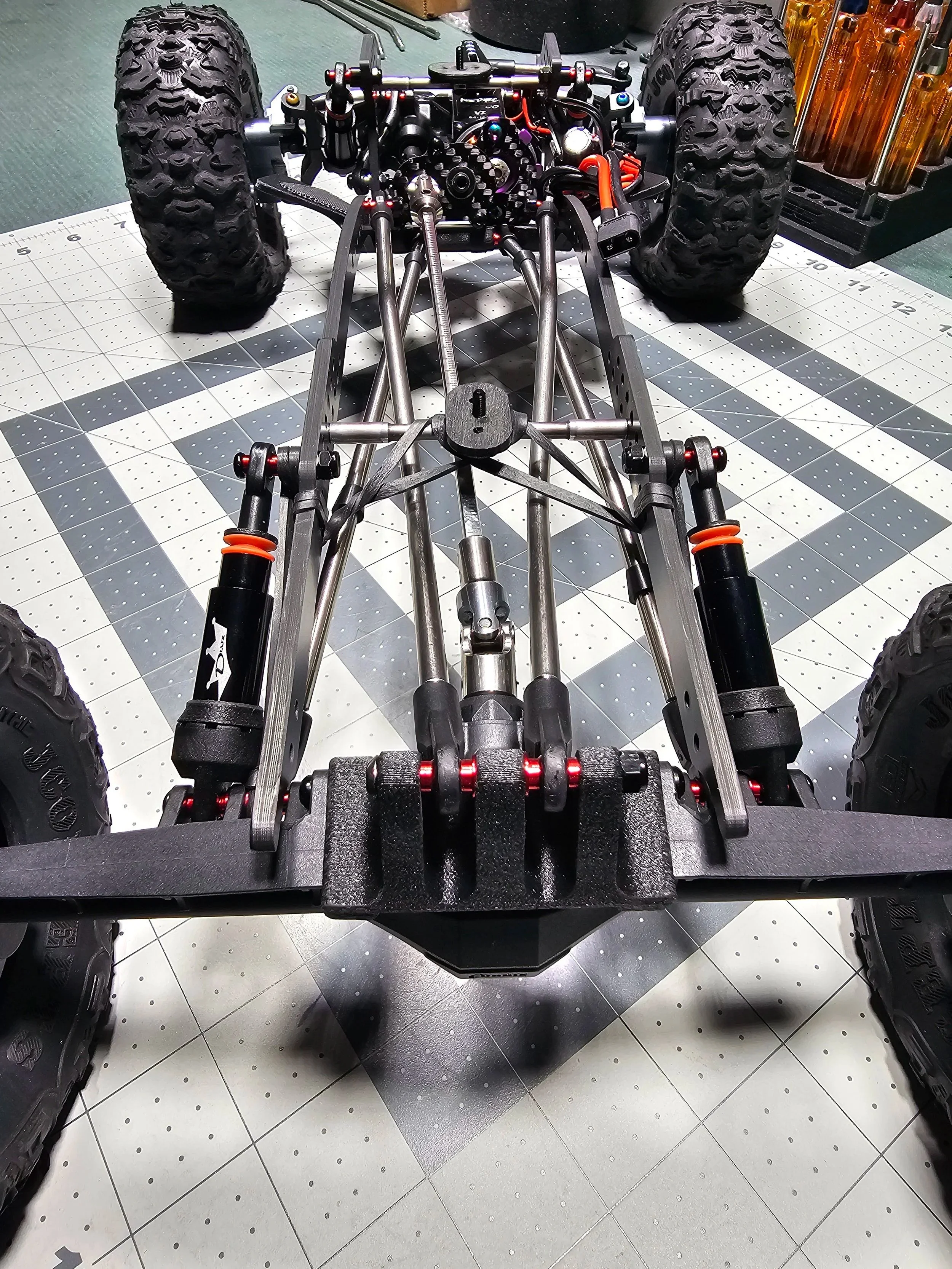

Rear End:

Upper rear links 3/16” will have “Z” shape them to clear the lower links and will be marked where it goes towards the skid.

Rear Lower links 3/16” will have the “U” shape. The marked end of links will mount in the back of the skid with a long bolt.

Adjustments can be made to suit your build best, I.E adjust the upper link out to take away some caster/ pinion angle.
